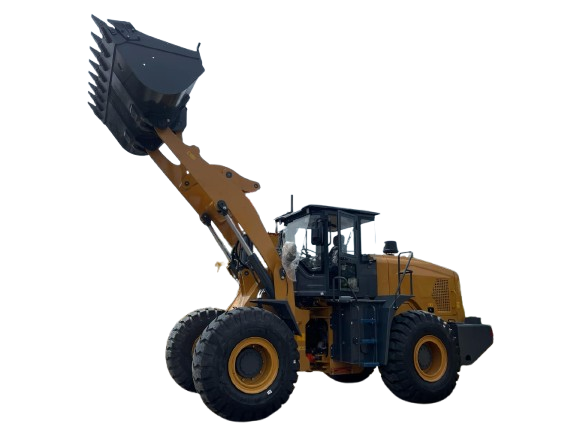

Wheel Loader SYZG
| Model | Rated Load (KG) | Engine Power | Max Bucket Capacity (M3) | Dumping Height (M) | Max Height (M) | Cylinder | Automatic Gear | Tire | Oprating Weight (KG) | Overall Dimension (MM) | Air Coditioning (AC) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ZL-926 | 1000 | 42 | 0.5 | 3.2 | 3.7 | 4 | 2F/2R | 7.50-16 | 2800 | 4970 X 1350 X 2550 | X |
| ZL-930 | 1600 | 42 | 0.8 | 3.3 | 4.3 | 4 | 2F/2R | 20.5-16 | 3500 | 5840 X 1900 X 2800 | X |
| ZL-932 | 1800 | 60 + Turbo | 0.9 | 3.3 | 4.3 | 4 | 4F/4R | 20.5-16 | 3900 | 5840 X 1900 X 2800 | X |
| ZL-932L | 1500 | 60 + Turbo | 1.5 | 4.2 | 5.5 | 4 | 4F/4R | 20.5-16 | 5300 | 6900 X 2000 X 2820 | X |
| ZL-936 | 2000 | 81 + Turbo | 1 | 3.5 | 4.6 | 4 | 4F/4R | 20/5-16 | 4800 | 5940 X 2050 X 2950 | X |
| ZL-936L | 1800 | 81 + Turbo | 1.7 | 4.2 | 5.5 | 4 | 4F/4R | 20.5-16 | 5000 | 6900 X 2200 X 2950 | X |
| Model | Rated Load (KG) | Engine Power | Max Bucket Capacity (M3) | Dumping Height (M) | Max Height (M) | Cylinder | Automatic Gear | Tire | Oprating Weight (KG) | Overall Dimension (MM) | Air Coditioning (AC) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ZL-940 | 2500 | 81+Turbo | 1.2 | 3.5 | 4.6 | 4 | 4F/4R | 16.7-20 | 5500 | 6900 × 2200 × 2950 | X |
| ZL-940L | 2000 | 81+Turbo | 1.8 | 4.5 | 5.8 | 4 | 4F/4R | 16.7-20 | 5900 | 7000 × 2400 × 2950 | X |
| ZL-946 | 2800 | 85+Turbo | 1.4 | 4.2 | 5 | 4 | 4F/4R | 16/70-20 | 6565 | 6600 × 2000 × 3000 | INCLUDE |
| ZL-946L | 2200 | 82+Turbo | 2 | 4.8 | 5.9 | 4 | 4F/4R | 16/70-24 | 7000 | 7600 × 2250 × 3000 | INCLUDE |
| ZL-948 | 3000 | 92+Turbo | 1.8 | 4.2 | 5.2 | 6 | 4F/4R | 17.5-25 | 7200 | 7000 × 2440 × 3030 | INCLUDE |
| ZL-948L | 2500 | 92+Turbo | 2.2 | 4.5 | 5.9 | 6 | 4F/4R | 18.9-25 | 8385 | 7130 × 2490 × 3050 | INCLUDE |
Wheel Loader LUGONG
| Model | Rated Load (KG) | Engine Power | Max Bucket Capacity (M3) | Dumping Height (M) | Max Height (M) | Cylinder | Automatic Gear | Tire | Oprating Weight (KG) | Overall Dimension (MM) | Air Coditioning (AC) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T-930 | 1600 | 42 | 0.9 | 3.2 | 4.3 | 4 | 2F/4R | 20.5/70-16 | 3200 | 5800 × 1830 × 2800 | X |
| T-932 | 1800 | 58+Turbo | 1 | 3.2 | 4.3 | 4 | 4F/4R | 20.5/70-16 | 3650 | 5800 × 1980 × 2800 | X |
| T-932L | 1500 | 58+Turbo | 1.5 | 4.1 | 5.8 | 4 | 4F/4R | 20.5/70-16 | 3650 | 5800 × 1980 × 2800 | X |
| T-936 | 2000 | 76+Turbo | 1.1 | 3.8 | 4.6 | 4 | 4F/4R | 16/60-20 | 4400 | 6000 × 2030 × 2090 | X |
| T-936L | 1800 | 76+Turbo | 1.7 | 4.1 | 5.8 | 4 | 4F/4R | 16/60-20 | 4400 | 6000 × 2030 × 2090 | X |
| LG-940 | 2500 | 76+Turbo | 1.7 | 3.8 | 4.6 | 4 | 4F/4R | 16/70-20 | 5050 | 6300 × 2040 × 3000 | INCLUDE AC |
| Model | Rated Load (KG) | Engine Power | Max Bucket Capacity (M3) | Dumping Height (M) | Max Height (M) | Cylinder | Automatic Gear | Tire | Oprating Weight (KG) | Overall Dimension (MM) | Air Coditioning (AC) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LG-940L | 2000 | 76+Turbo | 1.8 | 4.5 | 5.9 | 4 | 4F/4R | 16/70-20 | 5050 | 6300 × 2040 × 3000 | INCLUDE AC |
| LG-946 | 2800 | 85+Turbo | 1.4 | 4.2 | 5 | 4 | 4F/4R | 16/70-20 | 6300 | 6500 × 2250 × 3020 | INCLUDE AC |
| LG-946L | 2200 | 85+Turbo | 2 | 4.5 | 5.9 | 4 | 4F/4R | 16/70-24 | 6300 | 6500 × 2250 × 3020 | INCLUDE AC |
| LG-948 | 3000 | 92+Turbo | 1.8 | 4.2 | 5.2 | 6 | 4F/4R | 17.5-25 | 7200 | 7000 × 2440 × 3030 | INCLUDE AC |
| LG-948L | 2500 | 92+Turbo | 2.2 | 4.5 | 5.9 | 6 | 4F/4R | 18.90-25 | 8385 | 7130 × 2490 × 3050 | INCLUDE AC |
Wheel Loader LGMA
| Model | Rated Load (KG) | Engine Power | Max Bucket Capacity (M3) | Dumping Height (M) | Max Height (M) | No. Of Cylinders / Displacement | Tire | Oprating Weight (KG) | Overall Dimension (MM) | Transmission Type |
|---|---|---|---|---|---|---|---|---|---|---|
| LG-955H | 5000 | 160+SKN | 3 | 4.4 | 5.6 | 6 / 9.726L | 23.5-25 L3 16PR TT | 17200 | 8450 × 3000 × 3400 | Planetary Powershift |
| LG-930 | 1800 | 58+Turbo | 1 | 3.2 | 4.3 | 4 | 20.5/70-16 | 3650 | 5800 × 1980 × 2800 | 4F/4R |
| LG-938 | 2500 | 76+Turbo | 1.2 | 3.8 | 4.6 | 4 | 16/70-20 | 5050 | 6300 × 2040 × 3000 | 4F/4R |
| LG-939 | 2800 | 85+Turbo | 1.4 | 4.2 | 5 | 4 | 16/70-20 | 6300 | 6500 × 2250 × 3020 | 4F/4R |
Wheel Loader BACKHOE
| Model | Engine Power | Oprating Weight (KG) | Bucket Loader Capacity M3 | Bucket Excavator Capacity M3 | Overall Dimension (MM) | Tire | Automatic Gear |
|---|---|---|---|---|---|---|---|
| 388 | YUDONG 4105 BOOSTER | 85 | 8300 | 1 | 6150 × 2350 × 3763 | 14-17.5 / 19.5L-24 | 2F/2R |
| 4CX | YUCHAI 4108 SUPERCHARGER | 85 | 9600 | 1.2 | 6500 × 2500 × 3800 | 16.9-28 / 14 | 4 in front and 4 in back |
Rough Terrain Forklift
| Model | Engine Model | Rated Power (kW) | Vehicle Mass (KG) | Overall Dimension (MM) | Tire Type | Tire Size | Max Speed (KM/H) | Max Lifting (MM) | Fork Length (CM) |
|---|---|---|---|---|---|---|---|---|---|
| Rough Terrain Forklift | YUNNEI YN25GBZ | 55 | 4800 | 4000 × 1810 × 2420 | CHAOYANG 20.5 | 20.5/70-16 | 30 | 3500 | 120 |
Rough Terrain Forklift
| Model | Operating Weight (KG) | Boom Length (MM) | Arm Length (MM) | Bucket Capacity (M³) | Engine Model | Rated Power | Track Width (MM) | Grade Ability | Cylinder | Injection Type | Hydraulic Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BD-9020 | 2000 | 950 | 1800 | 0.04 | Yanmar 3TNV80F-SSUK | 13.4 kW / 2200 rpm | 230 | 30° | 3 Cylinder | Mechanical Direct Injection | Lonking |
| BD-9035 | 3850 | 1550 | 2550 | 0.11 | Kubota D1703-EB-SWD-1 | 18.2 kW / 2200 rpm | 300 | 30° | 3 Cylinder | Mechanical Direct Injection | Lonking |
| BD-9060 | 5850 | 1550 | 3000 | 0.25 | Yanmar 4TNV94L | 36.2 kW / 2100 rpm | 400 | 35° (70%) | 4 Cylinder / 3.054 L | Mechanical Direct Injection | Lonking |
| BD-9075 | 7680 | 3722 | 1620 | 0.28 | Yanmar 4TNV98 | 46.3 kW / 2200 rpm | 450 | 35° (70%) | 4 Cylinder / 3.054 L | Mechanical Direct Injection | Lonking |
| BD-9080 | 8000 | 3722 | 1620 | 0.3 | Yanmar 4TNV98T-SSUK | 56.5 kW / 2200 rpm | 450 | 35° (70%) | 4 Cylinder / 3.319 L | Electronic Distribution Pump | Lonking |
| Model | Operating Weight (KG) | Boom Length (MM) | Arm Length (MM) | Bucket Capacity (M³) | Engine Model | Rated Power | Fuel Tank (L) | Hydraulic Oil (L) | Track Width (MM) | Grade Ability | Cylinder | Injection Type | Hydraulic Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BD-9135 | 13600 | 4600 | 2500 | 0.56 | Cummins QSF3.8 | 74 kW / 2200 rpm | 290 | 140 | 500 | 35° (70%) | 4 Cylinder / 3.8 L | Common Rail Injection | Lonking |
| BD-9225 | 21800 | 5675 | 2920 | 1 | Cummins 6BTAA5.9-C150-II | 112 kW / 2000 rpm | 400 | 165 | 600 | 35° (70%) | 6 Cylinder / 5.9 L | Mechanical Direct Injection | Lonking |
| BD-9306 | 32800 | 6150 | 3200 | 1.6 | Cummins QSL9 | 209 kW / 2100 rpm | 600 | 300 | 600 | 35° (70%) | 6 Cylinder | Mechanical Direct Injection | Lonking |
| BD-9376 | 39300 | 6500 | 2800 | 1.9 | Cummins 6LTAA8.9-C325 | 241 kW / 2100 rpm | 610 | 300 | 600 | 35° (70%) | 6 Cylinder | Mechanical Direct Injection | Lonking |

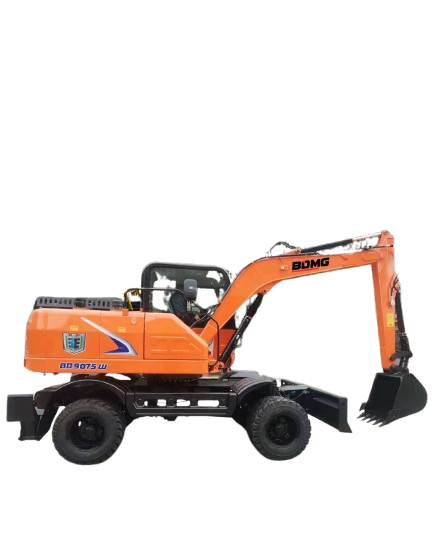

Wheel Excacator BD-9075W
| Model | Operating Weight (KG) | Boom Length (MM) | Arm Length (MM) | Bucket Capacity (M³) | Engine Model | Rated Power | Fuel Tank (L) | Hydraulic Tank Oil (L) | Tire Type | Grade Ability | Cylinder |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BD-9075W | 10000 | 4000 | 2000 | 0.4 | YC4DK100 | 73.5 kW / 2200 rpm | 150 | 150 | 8.25-20 | 30° (58%) | 4 Cylinder |
Self Loading Concrete Mixer
| Model | Concrete Output (L / Batch) | Total Drum Capacity (L) | Bucket Capacity (M³) | Water Tank (L) | Drum Slewing Angle (°) | Productivity | Engine Power (kW) | Engine Type | Operating Weight (KG) | Drive Type | Transmission | Tyre | Grade Ability (°) | Wheelbase (MM) | Tread (MM) | Min Turn Radius (MM) | Overall Size (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BD3500R | 3500 | 5200 | 0.6 | 800 | 270 | 4 batch/hour, 14 m³/h | 85 | YUCHAI 4105, Turbo Charged | 7600 | 4 x 4 | Automatic, 4F + 4R Shift | 12R22.5 | 40 | 2700 | 1700 | 5300 | 7830 × 2680 × 3300 |
| BD4000R | 4000 | 6100 | 0.6 | 800 | 290 | 4 batch/hour, 16 m³/h | 91 | YUCHAI 4105, Turbo Charged | 9900 | 4 x 4 | Automatic, 4F + 4R Shift | 12R22.5 | 40 | 2450 | 1820 | 4000 | 7640 × 2870 × 3520 |
| BD5500R | 5500 | 8200 | 0.8 | 860 | 270 | 4 batch/hour, 22 m³/h | 92 | YUCHAI 6105, Turbo Charged | 11750 | 4 x 4 | Automatic, 4F + 4R Shift | 12R22.5 | 40 | 3350 | 2100 | 6200 | 8450 × 3100 × 3640 |

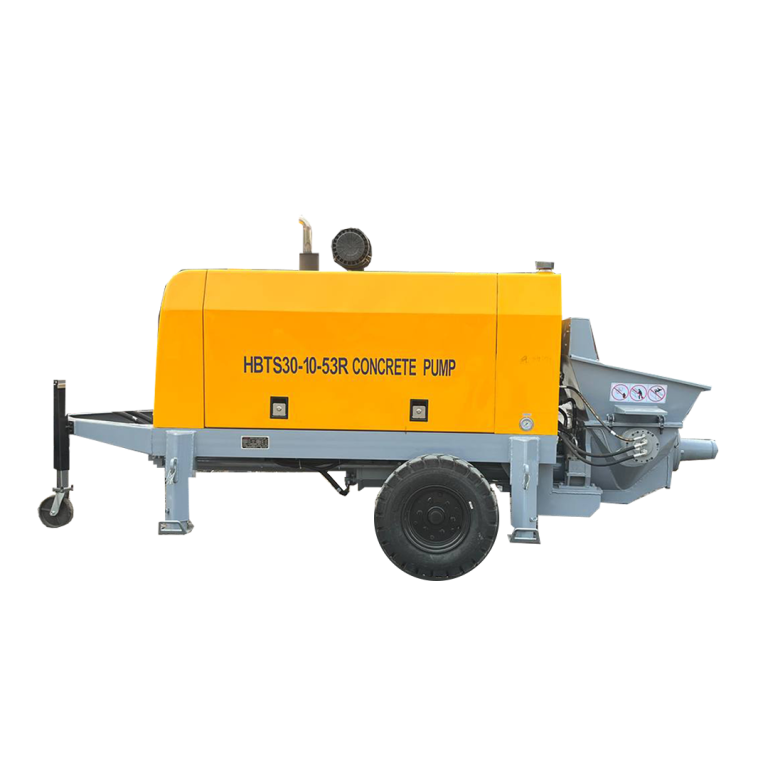

Concrete Pump
| Model | Max Concrete Output | Max Pumping Pressure | Outlet Diameter (MM) | Engine | Rated Power (KW) | Hydraulic Tank (L) | Dimension (MM) | Delivering Distance | Pipe Diameter | Main Weight (KG) | Pumping Pressure (MPa) | Stirring Pressure (MPa) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HBTS 30 | 30 / 16 m³/h | 8 / 4 MPa | 100 | WEICHAI | 48 | 180 | 4300 × 1670 × 1680 | 120 / 350 m | Φ100–Φ80 mm | 2580 | 16 | 12 |
| HBTS 40 | 42 / 23 m³/h | 13 / 6.3 MPa | 125 | WEICHAI | 72 | 180 | 4300 × 1670 × 1680 | 180 / 550 m | Φ100–Φ125 mm | 3100 | 32 | 12 |
Concrete Mixer Pump JBT40 - 450R
| Model | Max Output (m³/h) | Max Pressure (MPa) | Outlet Ø (mm) | Engine | Power (kW) | Hydraulic Tank (L) | Dimension (mm) | Deliver Distance (V/H) | Pipe Ø (mm) | Main Weight (kg) | Pump Pressure (MPa) | Valve Type | Concrete Cylinder | Hopper | Max Aggregate | Lubrication | Pressure Switch | Remote | Rated Speed (RPM) | Fuel (L/h) | Hydraulic System | Pump Displacement (ml) | Mix Pressure (MPa) | Host Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JBT40-13-450R | 40 | 13 | 125 | WEICHAI | 72 | 160 | 5200 × 2280 × 2900 | 100 / 300 m | 100 | 6000 | 31 | S Valve | Φ160 × 1000 mm | 450 L × 1000 mm | Pebble 35 mm, Gravel 40 mm | Automatic Electric Lubrication | No | Wireless Remote Control | 1800 | 12 | Open Circuit | 112 | 12 | 4500 |

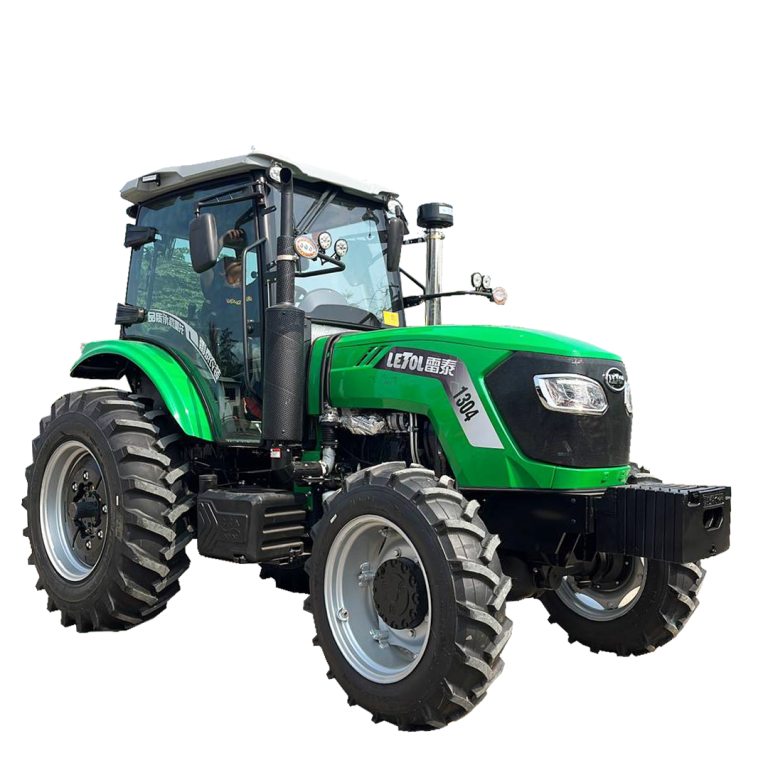

Wheel Tracktor
| Model | Engine Brand | Power (HP) | Gearbox | Tyre | Max Speed (KM/H) | Fuel Tank (L) | Dimension (MM) | Operating Weight (KG) | Cylinders |
|---|---|---|---|---|---|---|---|---|---|
| 40 HP | XINCHAI | 40 HP | 8F + 8R | 7.5-16 / 11.2-28 | 40 | 60 L | 3650 × 1500 × 2330 | 1800 KG | 4 |
| 50 HP | XINCHAI | 50 HP | 8F + 8R | 7.5-16 / 11.2-28 | 40 | 60 L | 3650 × 1500 × 2330 | 1800 KG | 4 |
| 90 HP | XINCHAI | 90 HP | 12F + 12R | 8.3-20 / 12.4-28 | 30.25 | 120 L | 4190 × 1790 × 2680 | 3200 KG | 4 |
| 130 HP | DONGFENGHONG | 130 HP | 16F + 8R | 11.2-24 / 16.9-38 | 34.5 | 100 L | 4900 × 1800 × 2750 | 4620 KG | 4 |

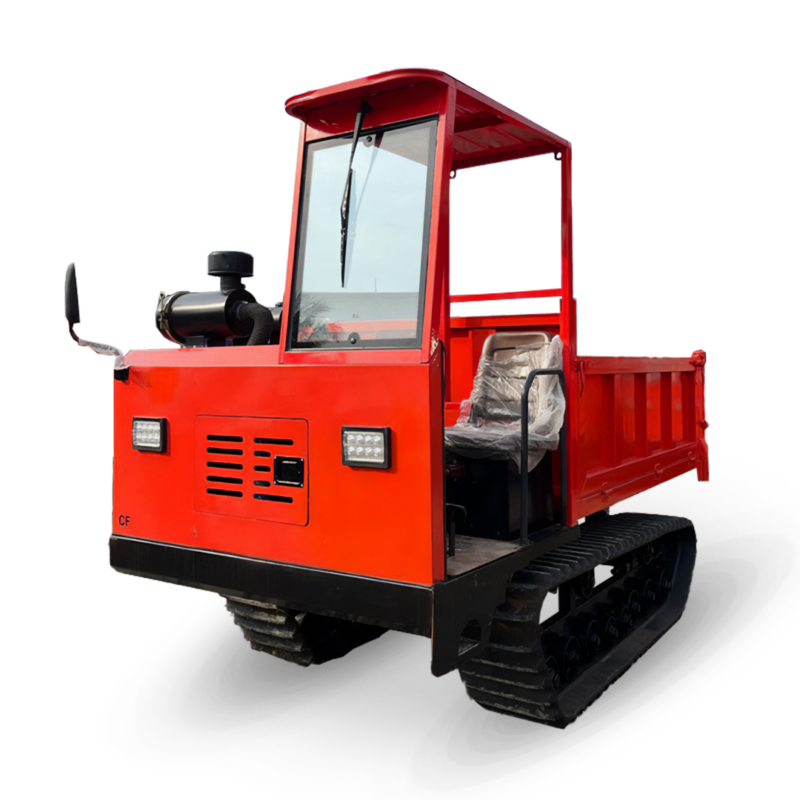

Mini Dumper Crawler
| Model | Engine Model | Power (kW) | Cylinder | Transmission | Gear | Dump Height (mm) | Dump Size (cm) | Load (kg) | Dimension (mm) | Hydraulic Pump | Pump Flow | Track Width (mm) | Weight (kg) | Speed (km/h) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T-30 | CHANGQIAN L25M | 17.5 | 1 Cylinder | Shifter Fork | 3F + 1R | 1600 | 200 x 150 x 50 | 1000 | 3000 x 1500 x 2100 | Gear Pump (Telescopic cyl) | 368 GPM | 320 | 1950 | 15 |
| T-40 | WEIFANG 4DHY4 | 40 | 4 Cylinder | Shifter Fork | 3F + 1R | 1600 | 210 x 150 x 60 | 1500 | 3300 x 1500 x 2100 | Gear Pump (Telescopic cyl) | 368 GPM | 350 | 2400 | 24 |
| T-50 | HJ - JH4102Y4-2 | 65 | 4 Cylinder | Shifter Fork | 3F + 1R | 1680 | 205 x 150 x 60 | 2200 | 3400 x 1500 x 2100 | Gear Pump (Telescopic cyl) | 368 GPM | 350 | 2800 | 24 |
| T-60 | HUAWEI ZH4BY4 | 65 | 4 Cylinder | Shifter Fork | 3F + 1R | 2570 | 217 x 168 x 60 | 2600–3000 | 3700 x 1650 x 2200 | Gear Pump (Telescopic cyl) | 368 GPM | 350 | 3400 | 24 |

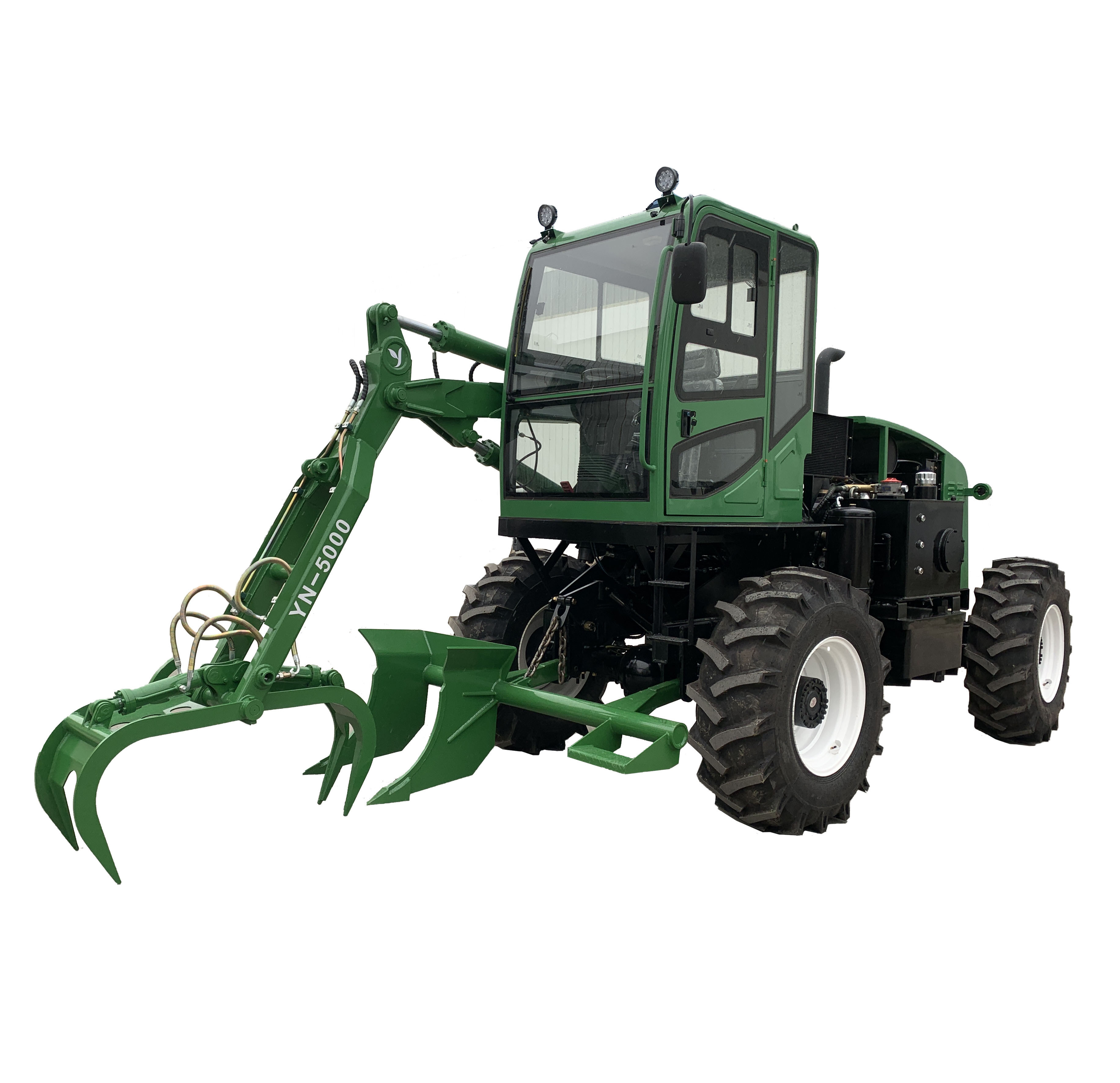

Sugarcane Loader QZ7600
| Item | Technical Specification |
|---|---|
| Total Weight | 8500 KG |
| Snatch Weight | 1000 KG |
| Engine Model | Cummins 4BTA3.9-C125 |
| Engine Power | 92 KW |
| Walking Speed | ≤30 KM/H |
| Boom Angle | 110° |
| Hydraulic System Pressure | 20 MPA |
| Hydraulic System Displacement | 63 ML/R |
| Maximum Catch Height | 5400 MM |
| Maximum Unloading Height | 5300 MM |
| Maximum Snatch Radius | 5300 MM |
| Total Length | 4900 MM |
| Total Width | 2600 MM |
| Cab Height | 3100 MM |
| Wheelbase | 2000 MM |
| Ground Clearance | 580 MM |
| Grips Mouth Width | 1500 MM |
| Tire Specifications | 23.1-26 Agricultural Tire |

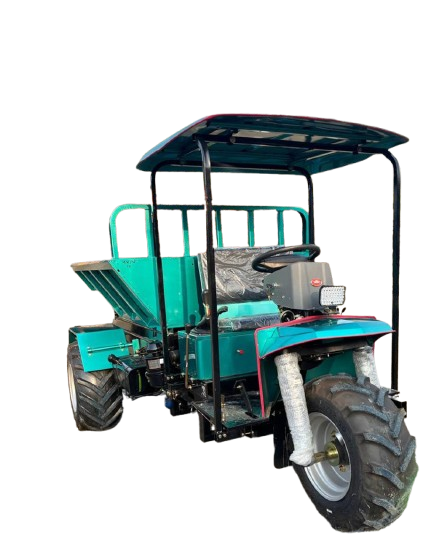

Wheel Dumper BD15
| Item | Specification |
|---|---|
| Overall Dimensions (L×W×H) mm | 3650 × 1850 × 1780 |
| Cargo Body Dimensions (L×W×H) mm | 1900 × 1600 × 450 |
| Wheel Base (mm) | 2525 |
| Wheel Track (Front / Rear) mm | 1340 |
| Min. Ground Clearance (mm) | 260 |
| Curb Weight (kg) | 1260 |
| Rated Payload (kg) | 1500 |
| Persons in Cab | 2 |
| Gross Vehicle Weight (kg) | 2890 |
| Max Speed (km/h) | 50 |
| Max Slope of Climb (%) | 15 |
| Min. Turning Radius (m) | 3.57 |
| Engine Type | CCZS1115B-CK |
| Displacement (L) | 1.194 |
| Rated Horsepower | 22 |
| Rated Voltage | 12V |
| Battery | CK6-QW-120MF |
